Product type
Carbides charged metal bonds
Main functionality
Wear resistance
Sintering method
Hot press
Suitable for
Fickerts and rollers
Application
Granite, concrete, abrasive stones
Advanced composite of pre-alloyed powders with Carbides, designed specifically for diamond tools operating under heavy-duty conditions.
This combination ensures a balance of toughness, strength, and compatibility with hard-phase reinforcements ideal for fickerts and rollers for granite and other hard and abrasive stones.

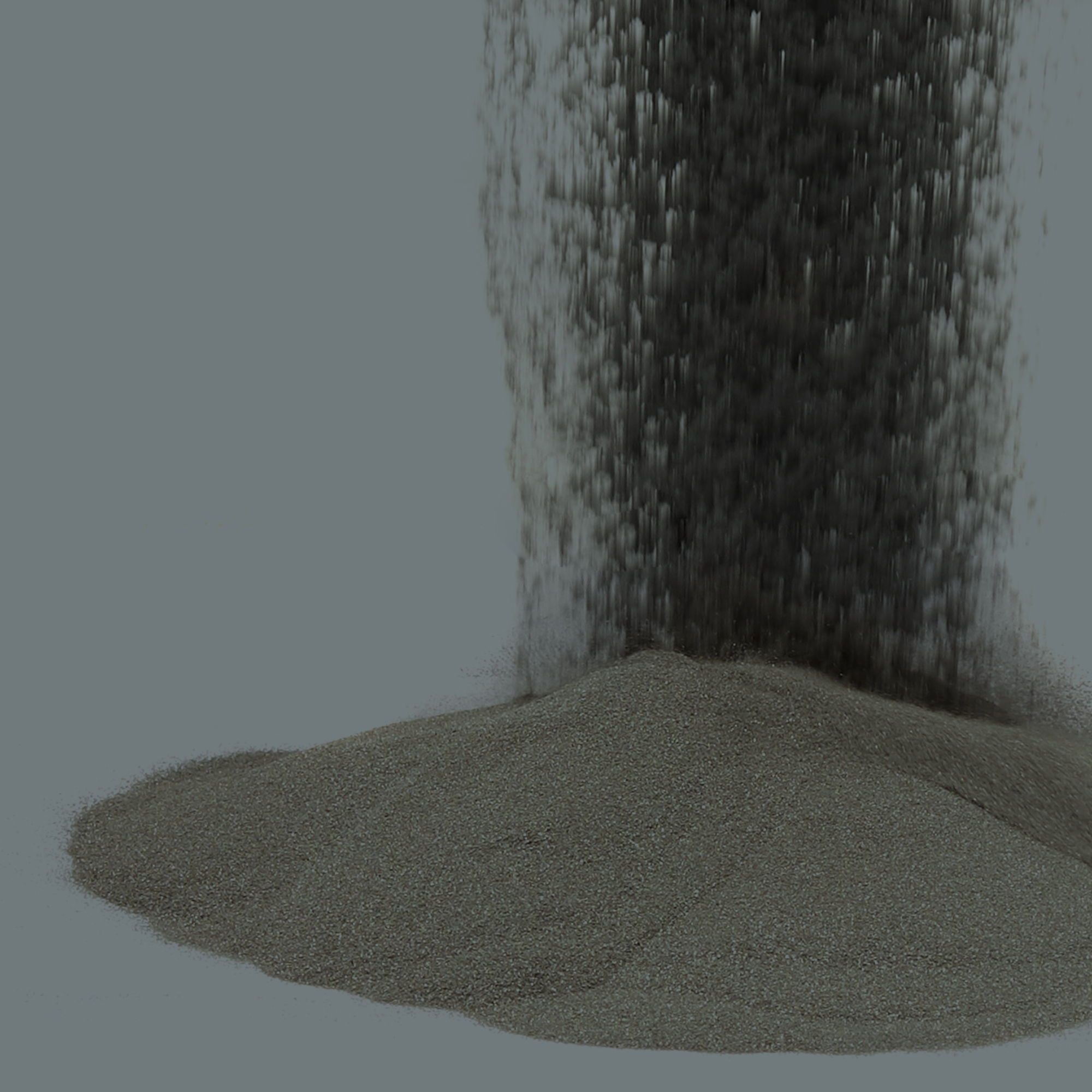

MBN offers also the W304 –WC powder, produced through sintering and crushing of hard metals. W304 provides exceptional wear resistance with a perfect binding within the metal matrix
| product name | S120 line | X161 line | X162 line | Carbide |
|---|---|---|---|---|
| Elements composition | Fe Cu WC Co | Fe Cu Ni P WC Co | Fe Cu Mo P WC Co | WC Co |
| Sintering Temperature (°C) | 800 | 800 | 800 | - |
| Density (g/cm³) | 9.6-10.1 | 8.3-9.2 | 8.3-9.2 | - |
| Hardness HRB scale (HRB) | 104.5/109 | 109.0 | 108.5 | - |
| Particle size (µm) | <500 <250 | <500 <106 | <500 <106 | <20um 20-50um 50-90um 90-120um 120-250um 250-500um mix of theese |
| Carbides content (%) | 40%-50% | 20%-40% | 20%-40% | Grade |
